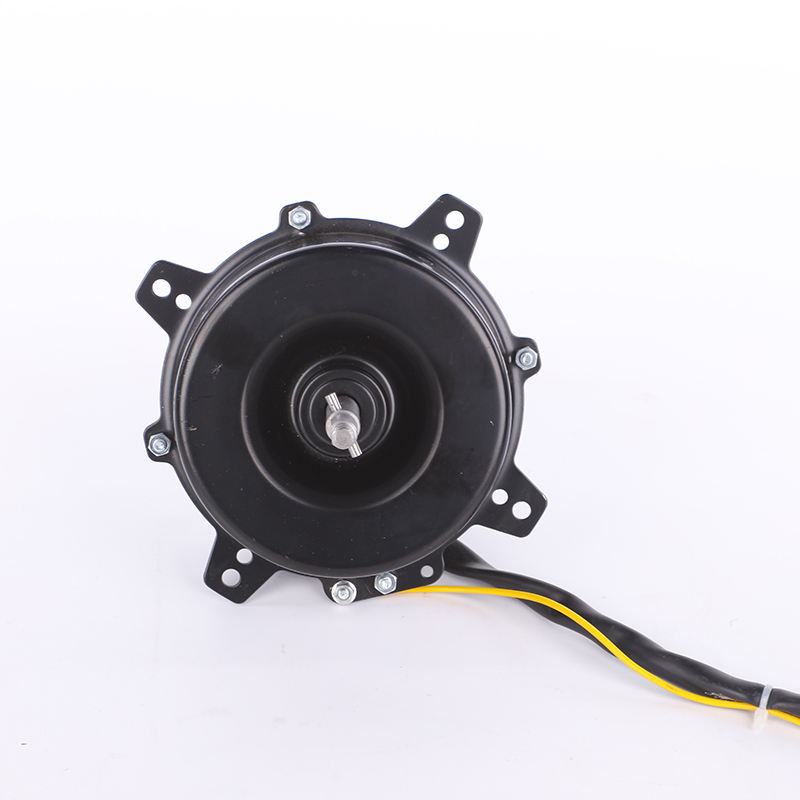

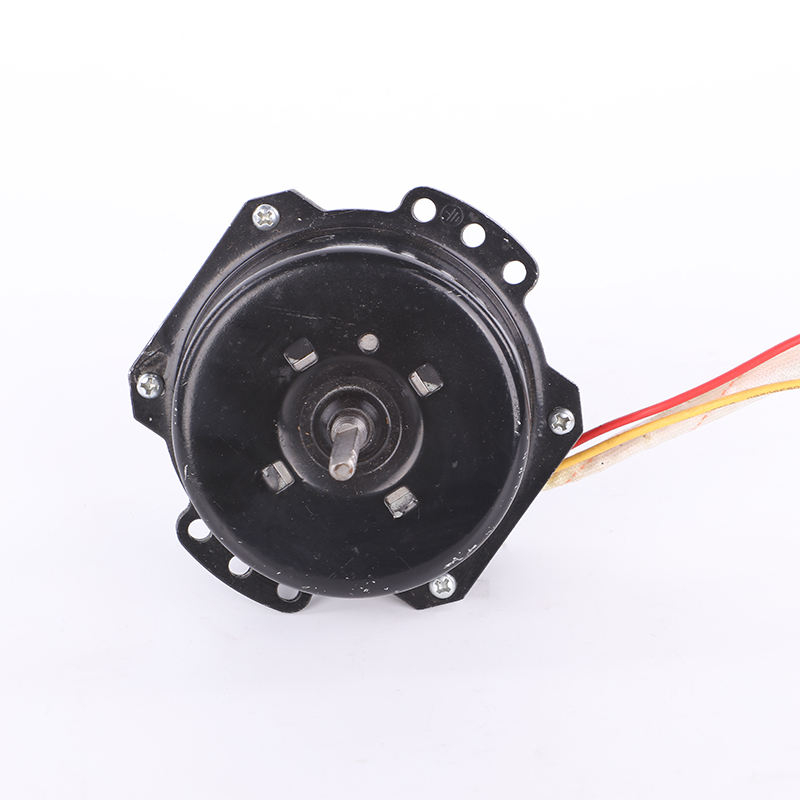

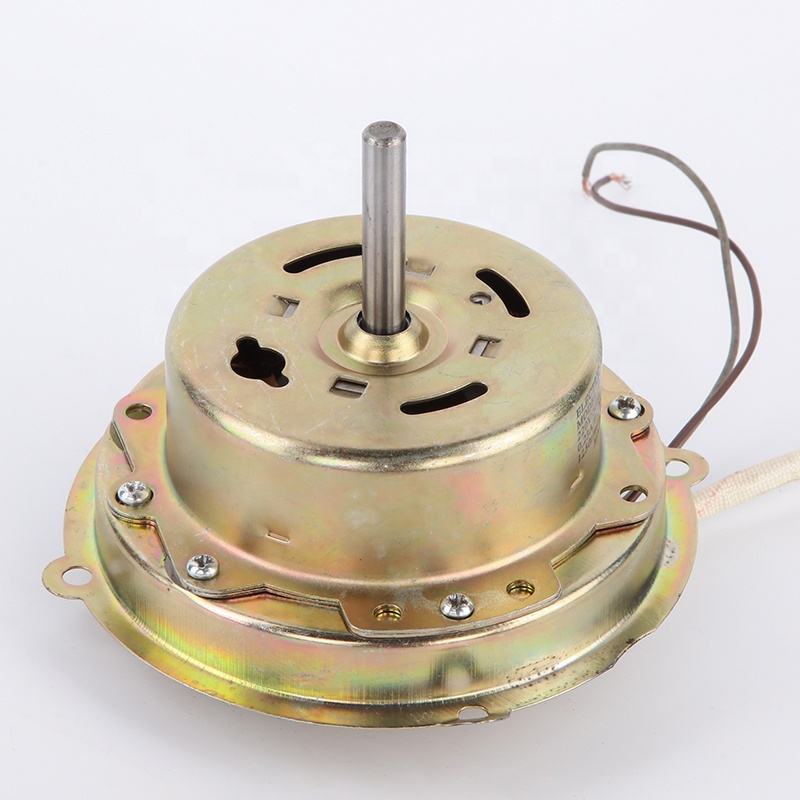

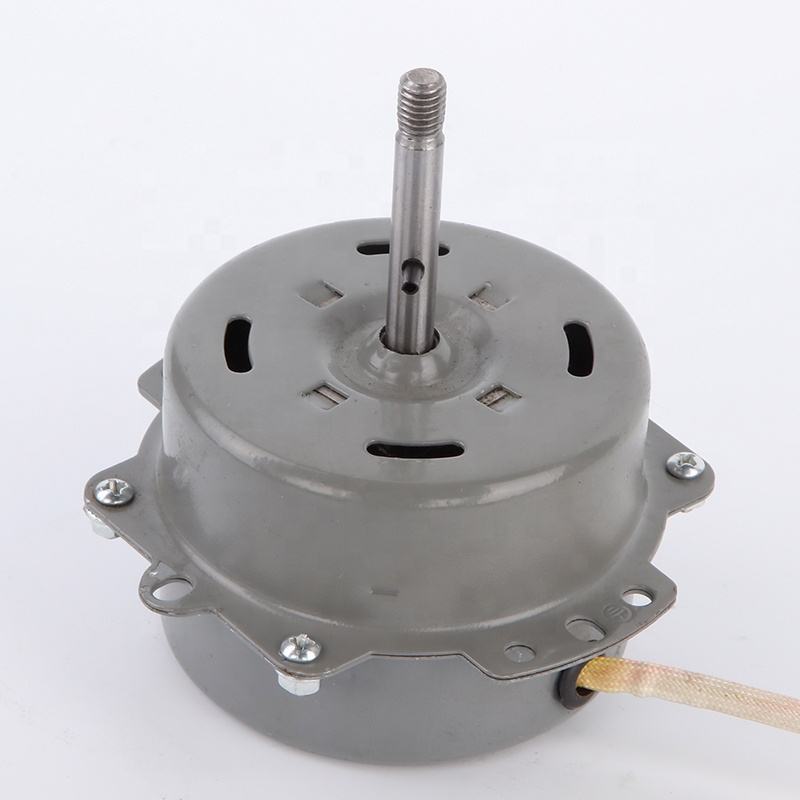

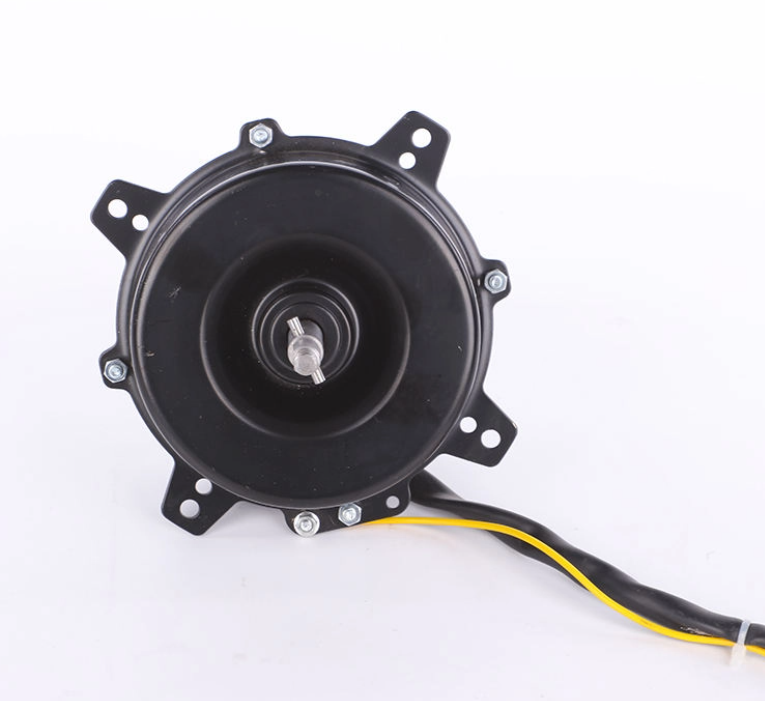

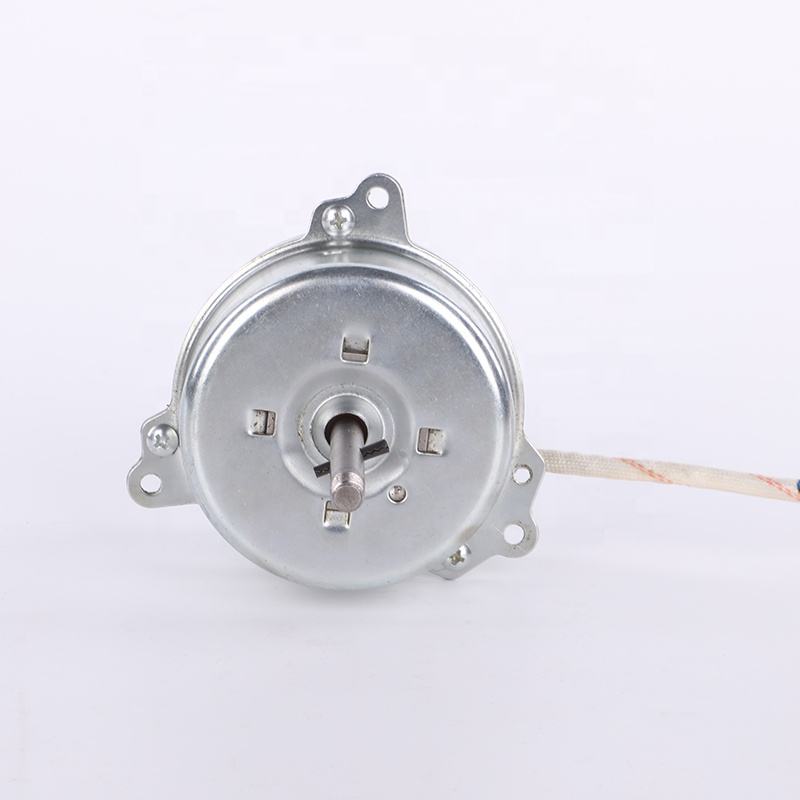

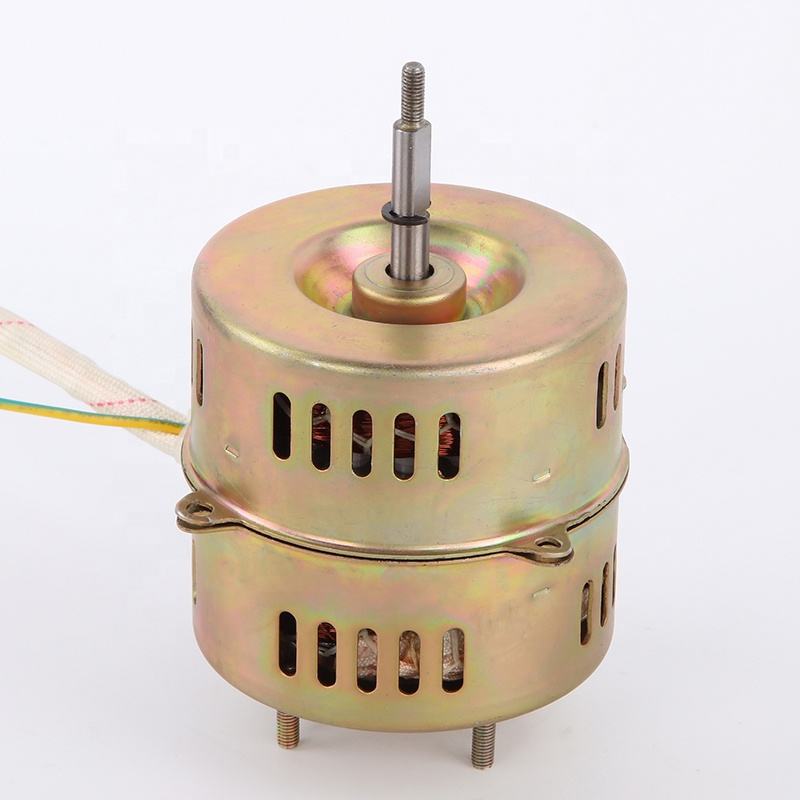

Our stepless speed DC motor is designed to deliver seamless, continuous speed regulation, ensuring ultra-smooth operation and accurate airflow control for a wide range of fan applications. Unlike traditional stepped-speed motors, our DC motor with stepless regulation eliminates abrupt speed changes and reduces vibration, making it the ideal choice for applications where noise reduction and performance consistency are critical. Engineered with advanced drive technology, this motor series offers exceptional reliability and energy efficiency, helping equipment manufacturers create high-performance, user-friendly products.
Parameter | 12V Fan Motor Series (Stepless Speed) | Portable Vacuum Cleaner Motor Series |
Voltage Range | DC 12V × 24V | DC 12V × 25V; Compatible with AC 110V/220V (with adapter) |
Power Output | 15W × 30W | 65W × 120W |
No-Load Speed Range | 500RPM × 4500RPM (stepless adjustable) | 8000RPM × 32500RPM (stepless adjustable) |
Vacuum Degree | - | > 8Kpa |
Speed Regulation Accuracy | ±2% | ±3% |
Efficiency | > 36% | > 41% |
Working Life | > 350 hours | > 160 hours (normal operation) |
Available Models | RS775-SS, RS755-SS, RS555-SS, RS545-SS, RS385-SS | RS545SM-SS |
Our smooth-running DC motor features advanced stepless speed regulation technology, allowing for precise, continuous adjustment of rotational speed from minimum to maximum. This eliminates the jerky transitions common in stepped-speed motors, ensuring consistent airflow and optimal performance across all operating conditions.
The precision-balanced rotor and optimized bearing system minimize vibration and noise generation, making our speed control DC motor perfect for noise-sensitive environments such as bedrooms, offices, and medical facilities. The low-noise operation enhances user comfort and improves the overall quality of your products.
Engineered with high-quality magnetic materials and precision winding, these motors deliver stable power output even under varying load conditions. This ensures consistent fan performance and prevents speed fluctuations, which is critical for applications requiring precise temperature control.
The stepless speed control system allows the motor to operate at the exact speed required for the task, reducing unnecessary power consumption. This not only lowers energy costs but also extends the lifespan of the motor and associated components by avoiding overloading.
Our stepless speed DC motor is tailored for equipment manufacturers specializing in fan and ventilation systems:
Smart Home Appliances: Smart ceiling fans, air purifiers, humidifiers, and desktop cooling fans
Precision Electronics: Cooling systems for servers, data centers, and laboratory equipment
Automotive: Cabin ventilation fans, climate control systems, and electric vehicle battery cooling fans
Industrial: HVAC systems, cleanroom ventilation, and temperature-controlled pharmaceutical storage units
We offer comprehensive customization services to adapt our DC motor with smooth operation to your unique application needs. Our engineering team can customize speed regulation curves, voltage ranges, power outputs, shaft designs, and mounting configurations. We also provide custom drive circuit integration and housing modifications to ensure seamless compatibility with your fan systems.
Every motor undergoes strict quality testing, including 100% performance testing, 48-hour aging testing, and extreme temperature testing, to ensure reliable operation in harsh conditions. Our products are certified to EMC, RoHS, CCC, and CE standards, guaranteeing compliance with global safety and environmental regulations and enabling you to sell your products worldwide.
Specialized Fan Motor Expertise: With years of dedicated experience in fan motor design, we understand the unique airflow and performance requirements of ventilation systems
Customized Speed Profiles: We develop tailored speed regulation curves to match your specific airflow and noise reduction needs
Robust Supply Chain: Our optimized supply chain management ensures consistent material quality and on-time delivery for all order sizes
Proactive After-Sales Support: We offer ongoing technical support and troubleshooting assistance to help you resolve any issues quickly and efficiently
Our stepless speed DC motors offer a speed regulation accuracy of ±2% for fan series and ±3% for vacuum cleaner series, ensuring precise performance.
Yes, we provide integrated drive circuit solutions to simplify your product design and reduce assembly time.
Yes, we can customize the housing color and finish to match your brand identity.
The minimum order quantity for customized motors is 500 units, depending on the complexity of the customization.
If you are looking for a high-performance stepless speed DC motor for your fan systems, contact our team today. We will collaborate with you to design a customized motor solution that meets your exact performance and design requirements. Request a free quote and sample now to experience the difference our smooth-running motors can make.
