DC Fan Motor Selection Guide: Matching Key Parameters with Application Scenarios

Selecting a suitable DC Fan Motor requires systematic consideration of key parameters and actual application scenarios to ensure reliable cooling performance, noise control, and energy efficiency . The three core performance indicators that should be prioritized are rotation speed (RPM), airflow (CFM), and noise level (dB). Rotation speed directly affects airflow—higher RPM fans can generate greater airflow, making them suitable for industrial equipment with high heat dissipation demands; while low-noise models with moderate RPM are more appropriate for office equipment and household appliances where quiet operation is required.

Static pressure (measured in mmH₂O or Pa) is another crucial parameter, especially for applications where air needs to pass through obstacles such as filters or heat sinks—fans with high static pressure should be preferred in such cases . Voltage compatibility must also be considered: DC fan motors typically operate at 5V, 12V, 24V, or 48V, and choosing the correct voltage ensures stable performance and avoids overheating . In terms of physical matching, size compatibility (common sizes include 80x80mm, 120x120mm) and protection level (such as IP54 for dust and water resistance, IP68 for full waterproofing) need to be adapted to the usage environment. For example, waterproof models are essential for humid or dusty industrial sites.

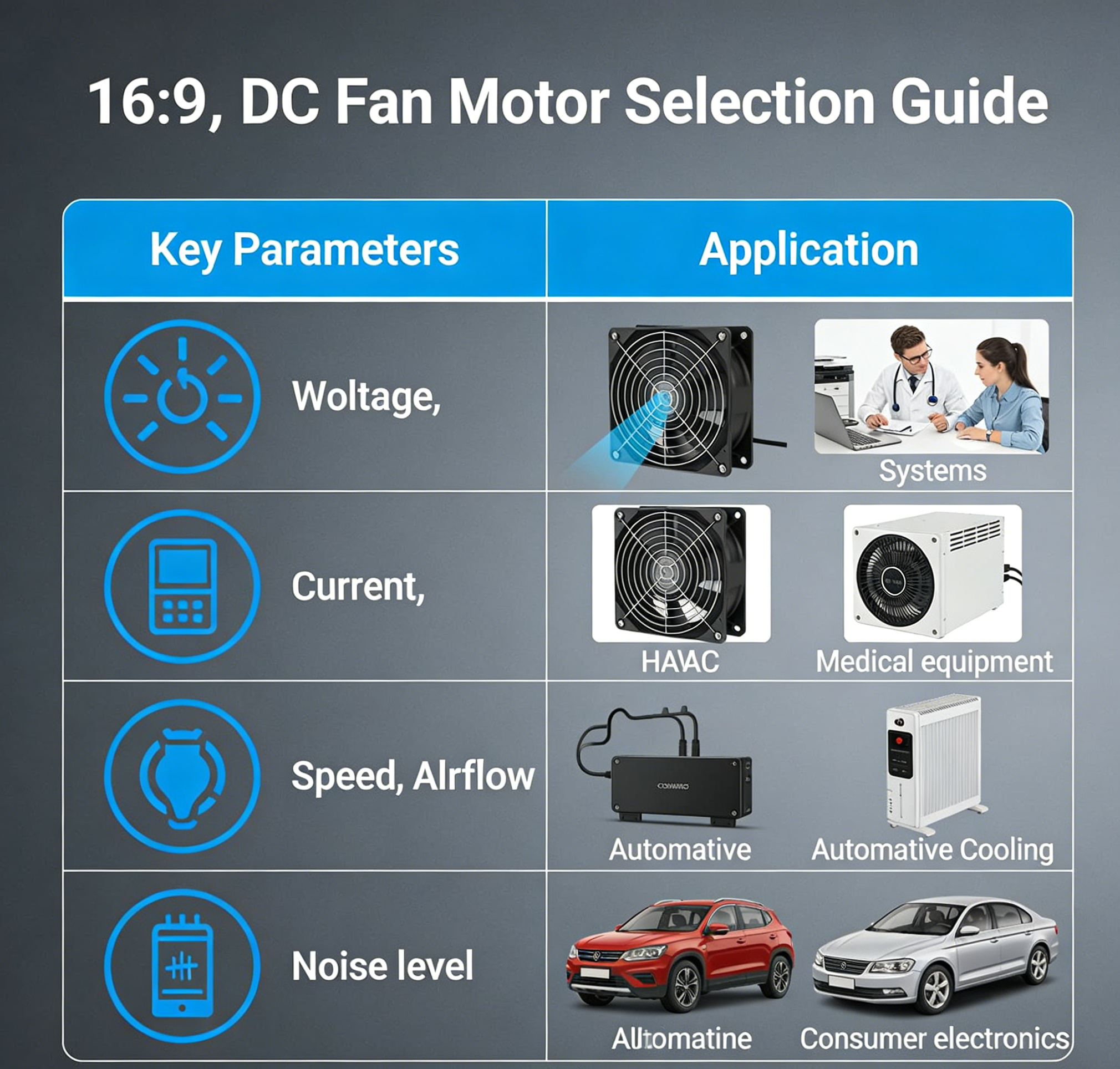

The following table summarizes typical parameter configurations for different application scenarios:
